VEHICLE LEAK DETECTOR NEXAS DUAL MODE EVAP TURBO SMOKE LEAK DETECTOR AESE509

$1,415.00 ex. GST

What Is Smoke Leak Diagnostic? Leaks can cause problems for vehicles, but not all leaks are fluid leaks. Most leaks can be gas or air leaks. Unmeasured air flow through your engine throws off the fuel to air ratio. It leads to poor engine performance, for example Increase in fuel consumption, lack of power, noise, shaking… Smoke Leak detection can also be used to find those annoying wind noises in the vehicle cabin

In stock

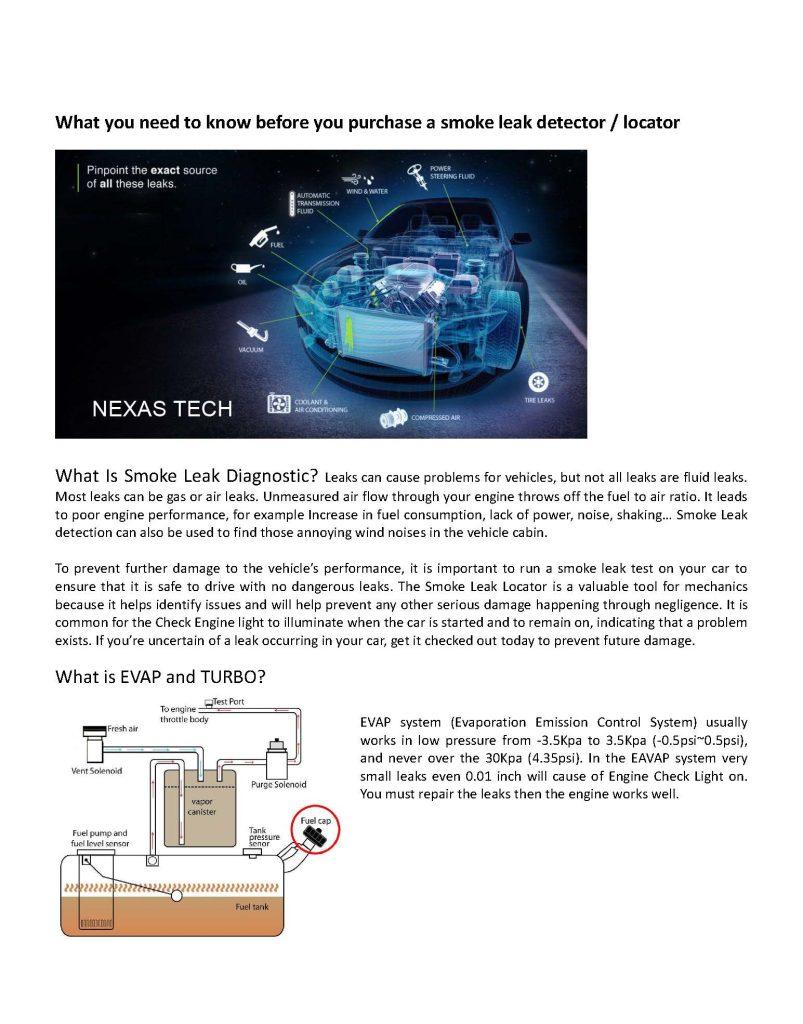

what you need to know before
you purchase a smoke leak detector / locator



What Is Smoke Leak Diagnostic? Leaks can cause problems
for vehicles, but not all leaks are fluid leaks. Most leaks can be gas or air
leaks. Unmeasured air flow through your engine throws off the fuel to air
ratio. It leads to poor engine performance, for example Increase in fuel
consumption, lack of power, noise, shaking… Smoke Leak detection can also be
used to find those annoying wind noises in the vehicle cabin.

To prevent further damage to the vehicle’s performance, it is
important to run a smoke leak test on your car to ensure that it is safe to
drive with no dangerous leaks. The Smoke Leak Locator is a valuable tool for
mechanics because it helps identify issues and will help prevent any other
serious damage happening through negligence. It is common for the Check Engine
light to illuminate when the car is started and to remain on, indicating that a
problem exists. If you’re uncertain of a leak occurring in your car, get it
checked out today to prevent future damage.

What is EVAP and TURBO?




EVAP system (Evaporation Emission Control System) usually works in low pressure from -3.5Kpa to 3.5Kpa (-0.5psi~0.5psi), and never over the 30Kpa (4.35psi). In the EAVAP system very small leaks even 0.01 inch will cause of Engine Check Light on. You must repair the leaks then the engine works well.

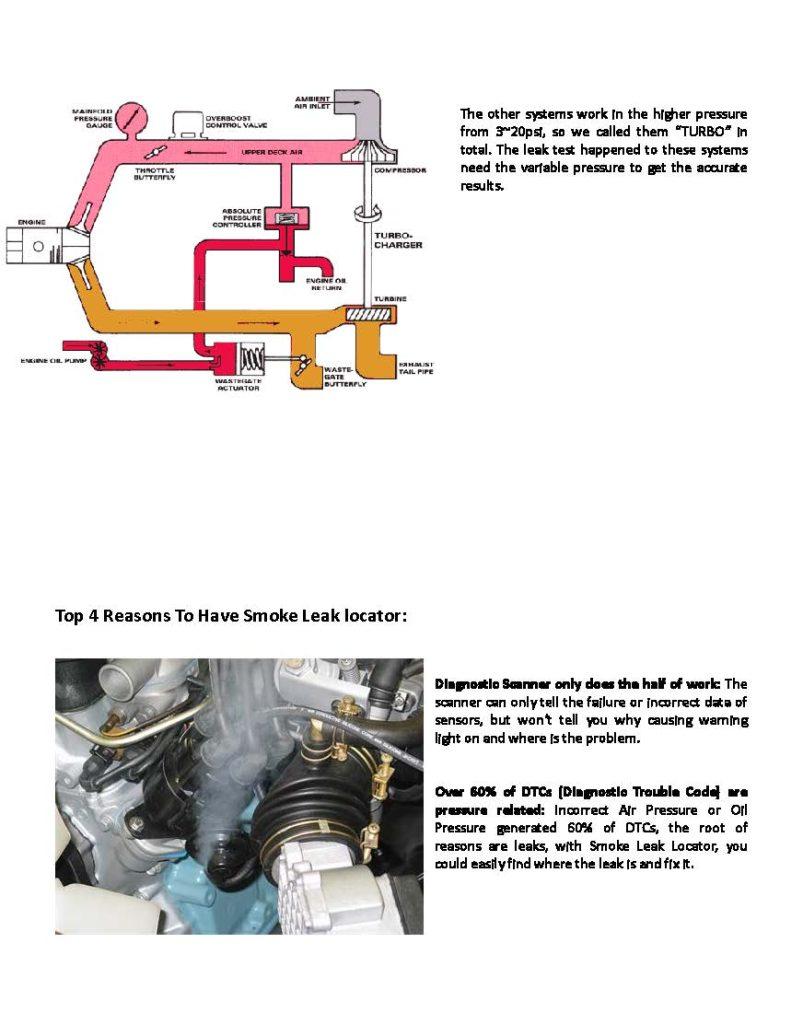

The other systems work in the higher pressure from 3~20psi, so we
called them “TURBO” in total. The leak test happened to these systems need the
variable pressure to get the accurate results.

Top 4 Reasons To Have
Smoke Leak locator:

Diagnostic Scanner only does the half of work: The scanner can only tell the failure or incorrect data of sensors, but won’t tell you why causing warning light on and where is the problem.

Over 60% of DTCs
(Diagnostic Trouble Code) are pressure related:
Incorrect Air Pressure
or Oil Pressure generated 60% of DTCs, the root of reasons are leaks, with
Smoke Leak Locator, you could easily find where the leak is and fix it.

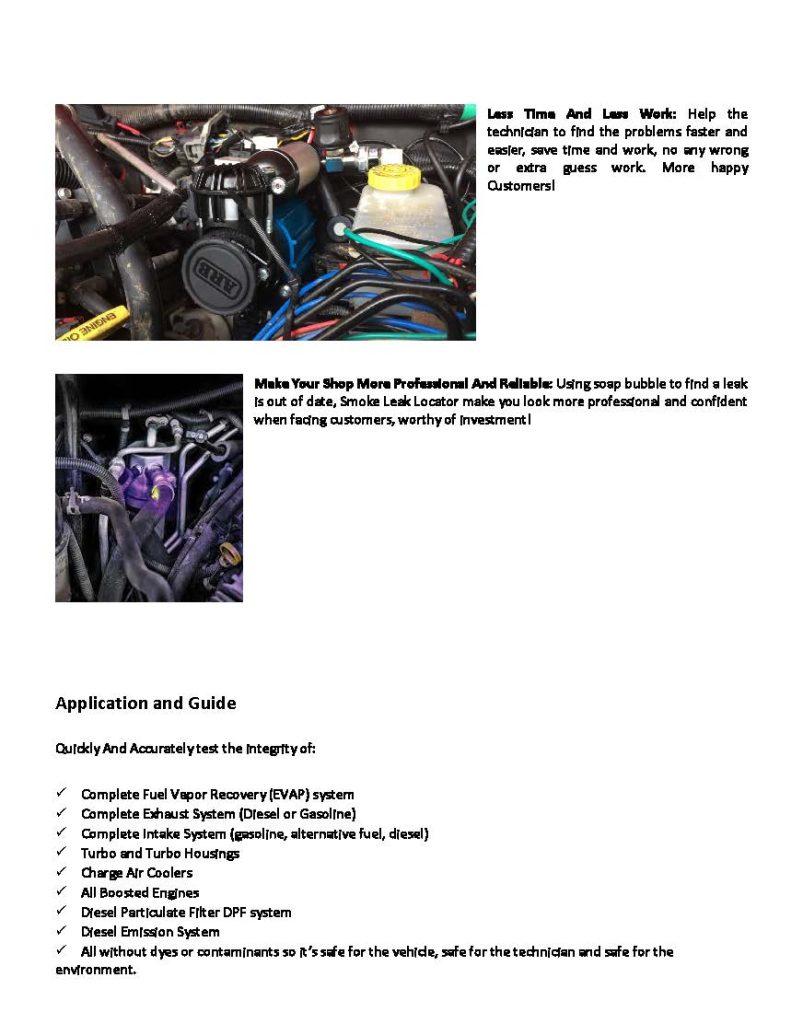

Less Time And Less Work: Help the
technician to find the problems faster and easier, save time and work, no any
wrong or extra guess work. More happy Customers!

Make Your Shop More Professional And Reliable: Using soap
bubble to find a leak is out of date, Smoke Leak Locator make you look more
professional and confident when facing customers, worthy of investment!

Application and Guide

Quickly
And Accurately test the integrity of:

ü Complete
Fuel Vapor Recovery (EVAP) system

ü Complete
Exhaust System (Diesel or Gasoline)

ü Complete
Intake System (gasoline, alternative fuel, diesel)

ü Turbo
and Turbo Housings

ü Charge
Air Coolers

ü All
Boosted Engines

ü Diesel
Particulate Filter DPF system

ü
Diesel Emission System

ü
All without dyes or
contaminants so it’s safe for the vehicle, safe for the technician and safe for
the environment.

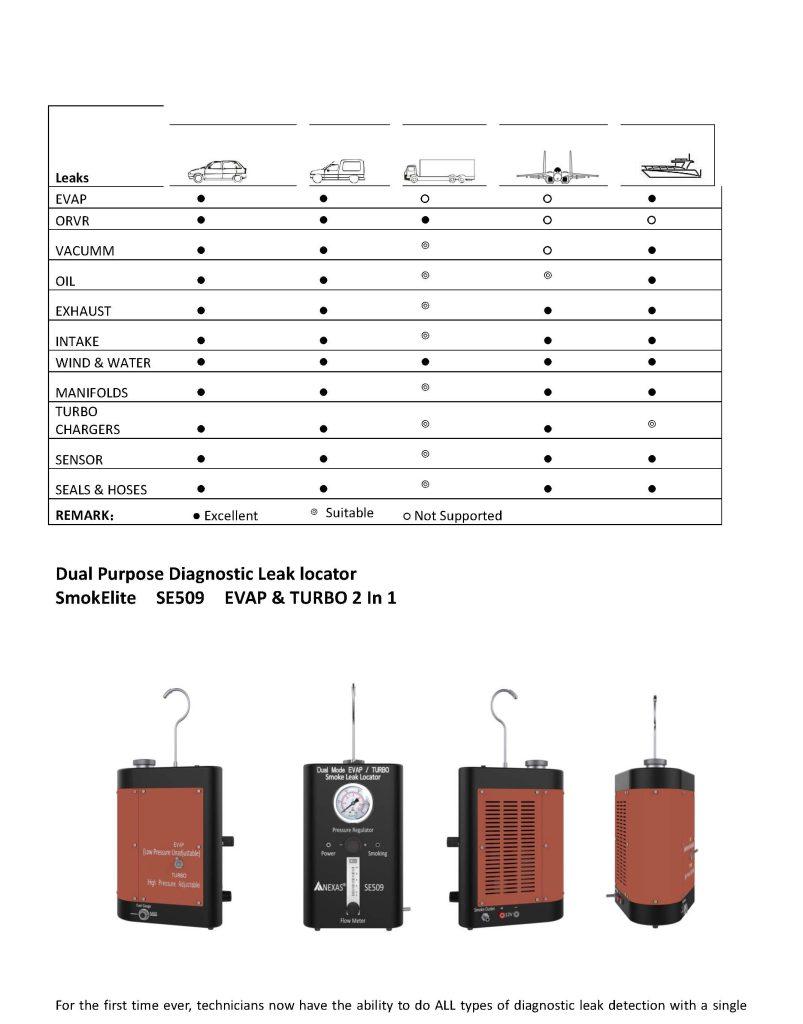

Dual Purpose Diagnostic
Leak locator

SmokeElite SE509
EVAP & TURBO 2 In 1

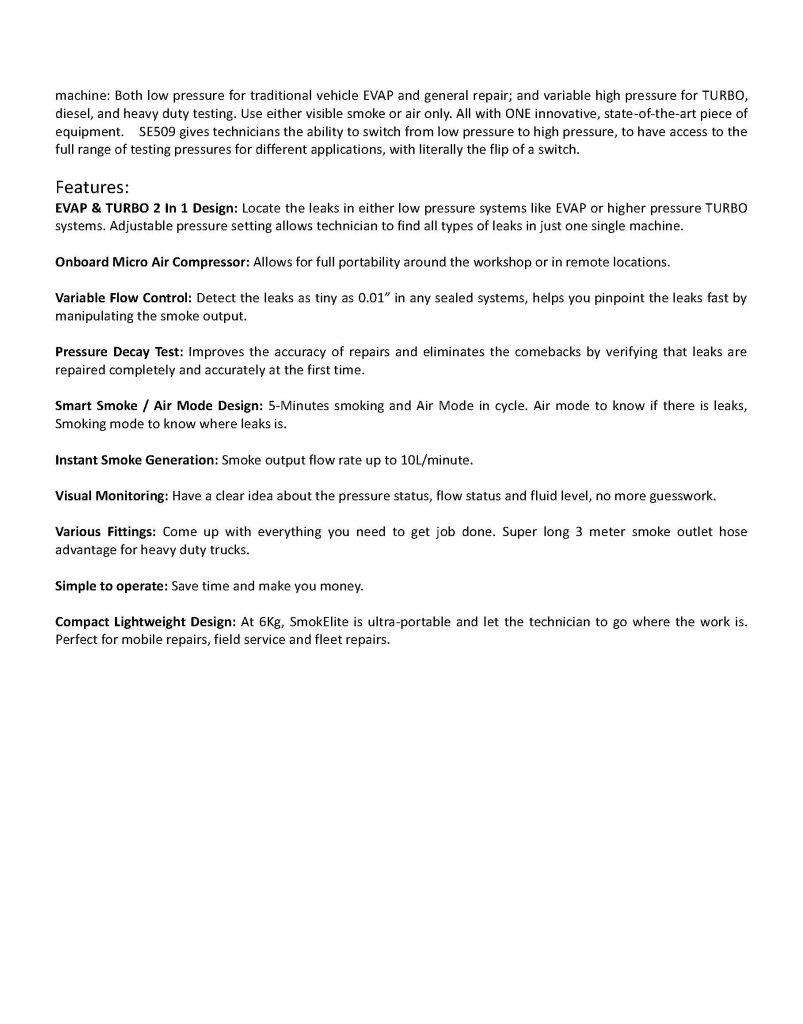

For the first time ever, technicians now have the
ability to do ALL types of diagnostic leak detection with a single machine:
Both low pressure for traditional vehicle EVAP and general repair; and variable
high pressure for TURBO, diesel, and heavy duty testing. Use either visible
smoke or air only. All with ONE innovative, state-of-the-art piece of
equipment. SE509 gives technicians the
ability to switch from low pressure to high pressure, to have access to the
full range of testing pressures for different applications, with literally the
flip of a switch.

Features:

EVAP &
TURBO 2 In 1 Design:
Locate the leaks in either
low pressure systems like EVAP or higher pressure TURBO systems. Adjustable
pressure setting allows technician to find all types of leaks in just one
single machine.

Onboard Micro
Air Compressor:
Allows for full
portability around the workshop or in remote locations.

Variable Flow
Control:
Detect the leaks as tiny as 0.01” in any
sealed systems, helps you pinpoint the leaks fast by manipulating the smoke
output.

Pressure Decay
Test:
Improves the accuracy of repairs and eliminates
the comebacks by verifying that leaks are repaired completely and accurately at
the first time.

Smart Smoke /
Air Mode Design:
5-Minutes smoking and
Air Mode in cycle. Air mode to know if there is leaks, Smoking mode to know
where leaks is.

Instant Smoke
Generation:
Smoke output flow rate up to 10L/minute.

Visual
Monitoring:
Have a clear idea about the pressure
status, flow status and fluid level, no more guesswork.

Various
Fittings:
Come up with everything you need to get
job done. Super long 3 meter smoke outlet hose advantage for heavy duty trucks.

Simple to
operate:
Save time and make you money.

Compact
Lightweight Design:
At 6Kg, SmokElite is
ultra-portable and lets the technician to go where the work is. Perfect for
mobile repairs, field service and fleet repairs.

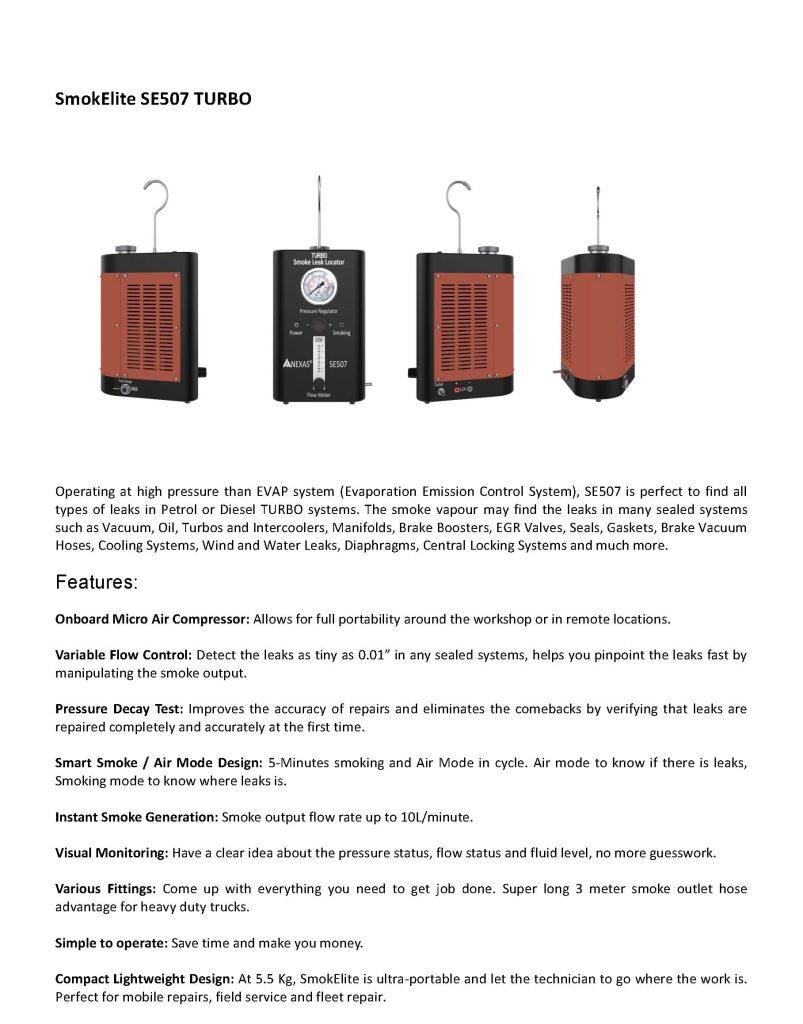

SmokElite SE507 TURBO

Operating at high pressure
than EVAP system (Evaporation Emission Control System), SE507 is perfect to
find all types of leaks in Petrol or Diesel TURBO systems. The smoke vapour may
find the leaks in many sealed systems such as Vacuum, Oil, Turbos and
Intercoolers, Manifolds, Brake Boosters, EGR Valves, Seals, Gaskets, Brake
Vacuum Hoses, Cooling Systems, Wind and Water Leaks, Diaphragms, Central
Locking Systems and much more.

Features:

Onboard Micro
Air Compressor:
Allows for full portability
around the workshop or in remote locations.

Variable Flow
Control:
Detect the leaks as tiny as 0.01” in any
sealed systems, helps you pinpoint the leaks fast by manipulating the smoke
output.

Pressure Decay
Test:
Improves the accuracy of repairs and eliminates
the comebacks by verifying that leaks are repaired completely and accurately at
the first time.

Smart Smoke /
Air Mode Design:
5-Minutes smoking and
Air Mode in cycle. Air mode to know if there is leaks, Smoking mode to know
where leaks is.

Instant Smoke
Generation:
Smoke output flow rate up to 10L/minute.

Visual
Monitoring:
Have a clear idea about the pressure
status, flow status and fluid level, no more guesswork.

Various
Fittings:
Come up with everything you need to get
job done. Super long 3 meter smoke outlet hose advantage for heavy duty trucks.

Simple to
operate:
Save time and make you money.

Compact Lightweight
Design:
At 5.5 Kg, SmokElite is ultra-portable and
let the technician to go where the work is. Perfect for mobile repairs, field
service and fleet repair.

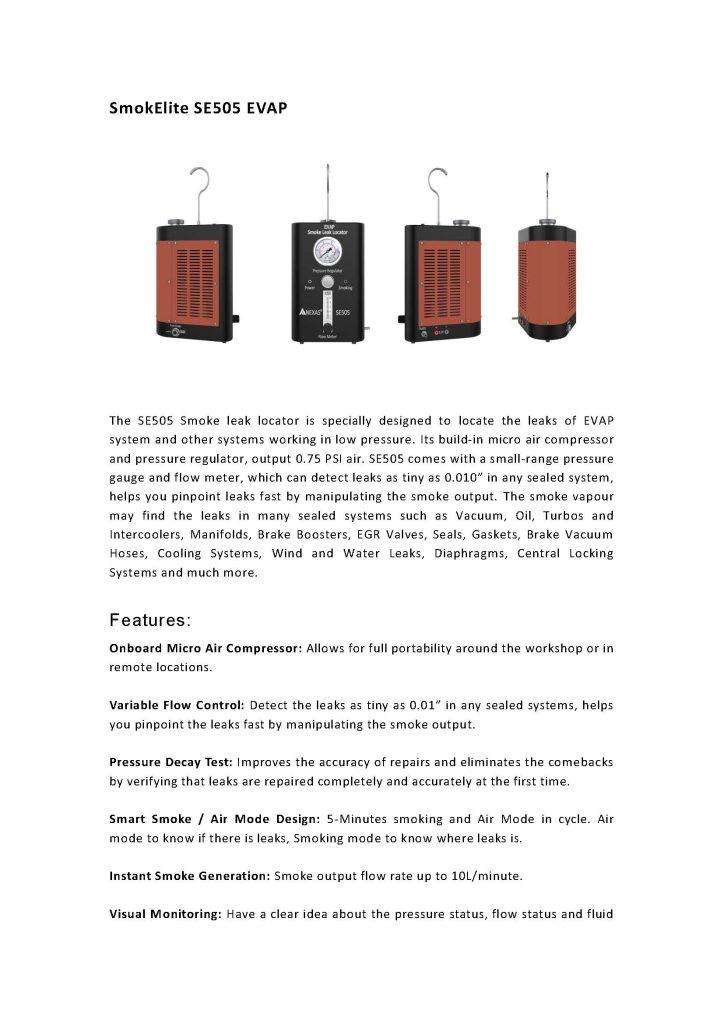

Features:

Onboard Micro
Air Compressor:
Allows for full
portability around the workshop or in remote locations.

Variable Flow
Control:
Detect the leaks as tiny as 0.01” in any
sealed systems, helps you pinpoint the leaks fast by manipulating the smoke
output.

Pressure Decay
Test:
Improves the accuracy of repairs and eliminates
the comebacks by verifying that leaks are repaired completely and accurately at
the first time.

Smart Smoke /
Air Mode Design:
5-Minutes smoking and
Air Mode in cycle. Air mode to know if there is leaks, Smoking mode to know
where leaks is.

Instant Smoke
Generation:
Smoke output flow rate up to 10L/minute.

Visual
Monitoring:
Have a clear idea about the pressure
status, flow status and fluid level, no more guesswork.

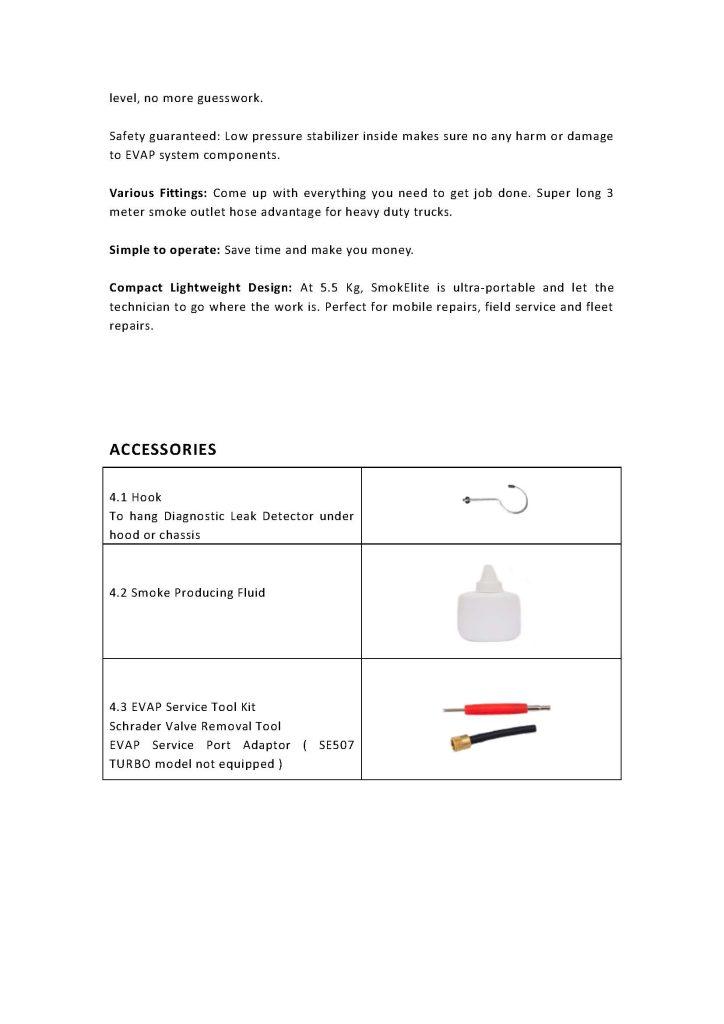

Safety guaranteed: Low pressure stabilizer inside
makes sure no any harm or damage to EVAP system components.

Various
Fittings:
Come up with everything you need to get
job done. Super long 3 meter smoke outlet hose advantage for heavy duty trucks.

Simple to
operate:
Save time and make you money.

Compact Lightweight
Design:
At 5.5 Kg, SmokElite is ultra-portable and
let the technician to go where the work is. Perfect for mobile repairs, field
service and fleet repairs.

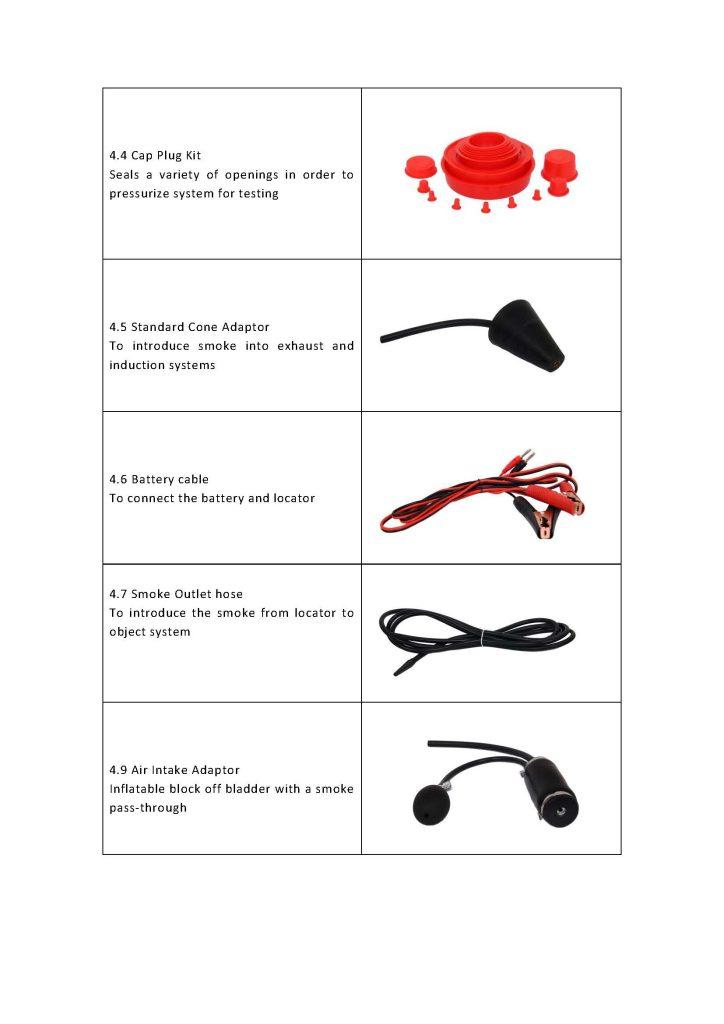

ACCESSORIES






8kg 34.5cmx30cmx30cm

Fill with No 26 mineral oil

Leak detector in use
https://www.youtube.com/watch?v=9apuUVrx4L4

Additional information

Weight 8 kg
Dimensions 34.5 × 30 × 30 cm
