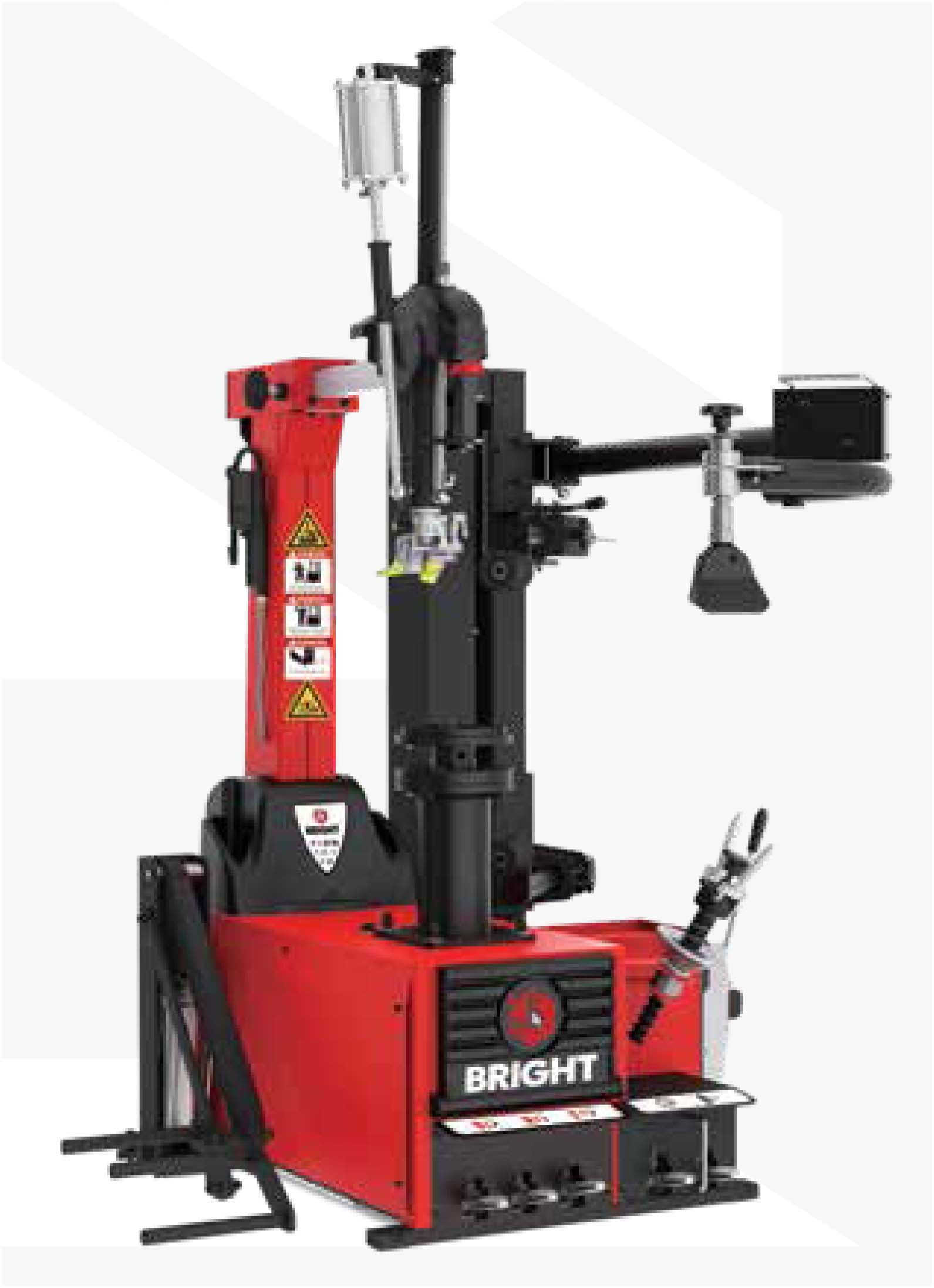

TRUCK AND CAR TYRE CHANGER HEAVY DUTY AE897 FROM BRIGHT

As rim safety becomes more and more important, When workshop safety and efficiency became more and more important, 897 came into being. After three years of continuous market research and development and improvement, Rome is finally built.High efficiency work, covering the full range of workshop requirements of worker protection, high efficiency at low cost without compromise.

Highlights

The tyre changer adopts the tilting back structure, and the forward and

backward tilt of the column are all controlled and locked by pneumatic

control.

Standard 200mm large cylinder matched with variable torque arm,

bead breaker force is stronger, is suitable for all kinds of hard rubber

tires, explosion-proof tires.

Special assisting arm, upper and lower press roller can run

independently, easy to operate, high efficiency.

Equipped with tyre lifting arm, auxiliary loading and unloading tires,

reduce labor intensity.

Technical data

Rim diameter 12” - 30” inch

Rim width 3"--14"inch

Max wheel diameter 43"inch

Working pressure 8 - 10 bar

Bead breaking force 2800Kg

Powers supply 110V/220V/380V

Motor Power 0.75Kw/1.1Kw

Rotation per minute 6.5/13rpm

Noise ＜70dB

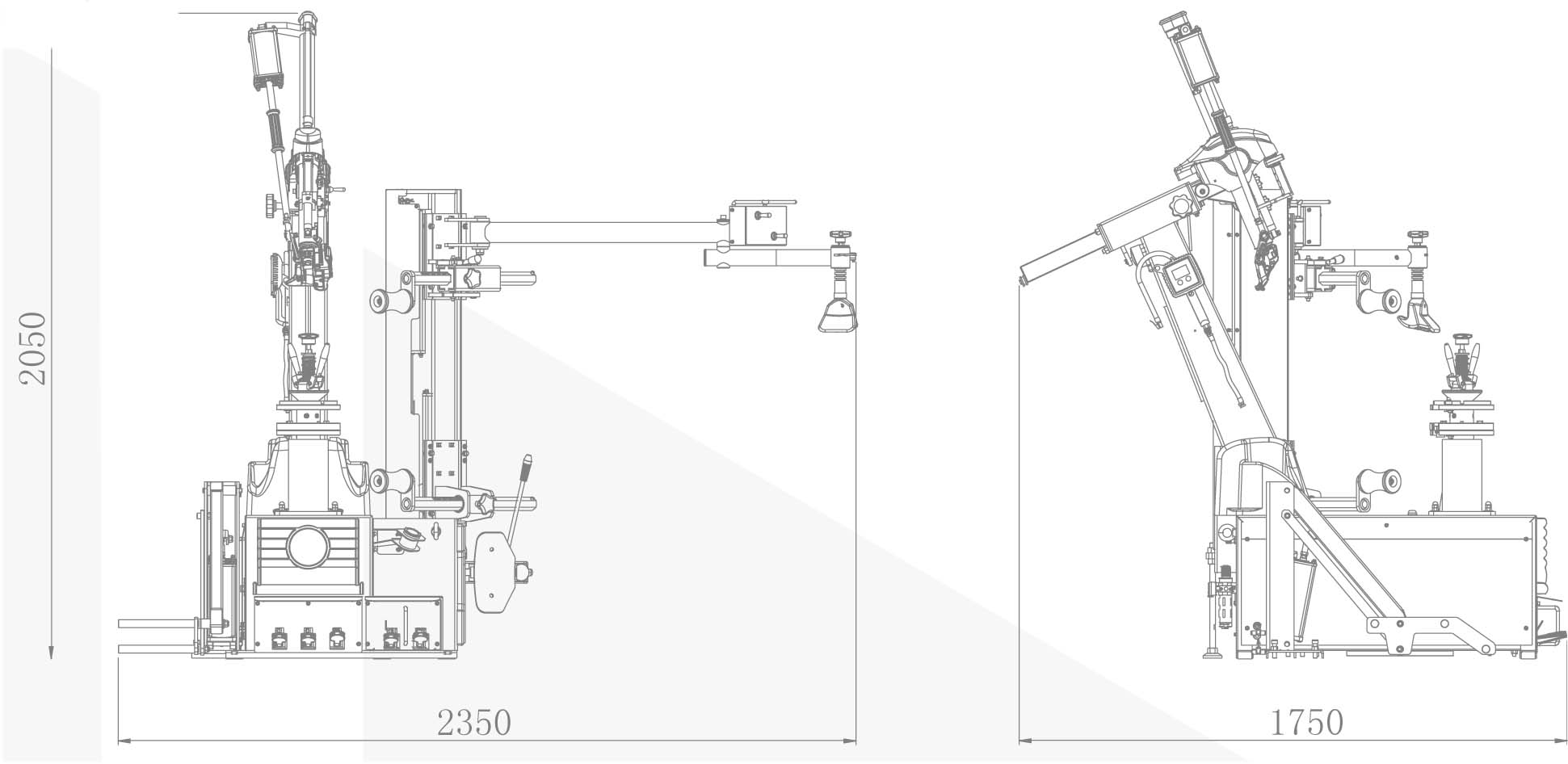

Machine dimensions 1950×1850×2150 mm

Packing dimensions 1230x1150x1850 mm
