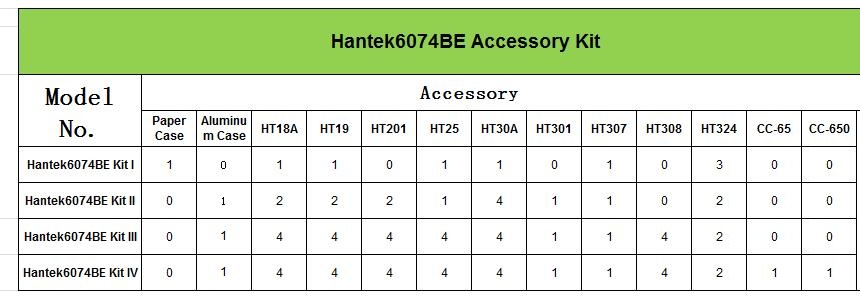

OSCILLOSCOPE 4 CHANNEL Hantek 6074BE Series Kit I

$360.00 ex. GST

Out of stock

OSCILLOSCOPE 4 CHANNEL Hantek 6074BE Series Kit I

Standard equipped over 80 types of automotive measurement function (Ignition Action/The Sensor/Bus Diagnosis/Performer/Startup&Charge); USB 2.0 interface plug and play, and no need extra power supply; Support tablet PC; Support WIN10/ WIN8/WIN7 etc. Free software upgrading constantly, higher cost performance; Support USBXI, easy to operate. 4 channels oscilloscope, 1GSa/s real time sampling rate, 2mV-10V/DIV high input sensitivity and large input range, 70MHz high bandwidth, small size, easy for carrying. Dynamic cursor tracking, waveform record and replay function.

Feature

  • Standard equipped over 80 types of automotive measurement function;

First Diagnosis: Intake manifold vacuum & ignition, Petrol fumes adjusting valve vacuum & ignition, Idle exhaust ignition, Starting exhaust ignition

Ignition: primary and secondary

Sensor: Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position

Bus Diagnosis: CAN bus data examine, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus

Performer: Petrol/Diesel

Starter and charging circuits

  • Fit for the portable computers, table PC, and suitable for wild mobile use and business trip use. Support WIN10/ WIN8/WIN7 etc.
  • USB 2.0 interface plug and play, and no need extra power supply;
  • Great function, More than 20 kinds of automatic measurement function, PASS/FAIL Check function. Resourceful trigger function, dynamic cursor tracking, waveform record and replay function.
  • Good mechanical design with small size which is easy for carrying. The outer case is made by the same material with iPad - Anodised aluminium. It has great heat resistance and abrasive resistance with beautiful appearance. The hardness of aluminium alloy surface is greatly improved.

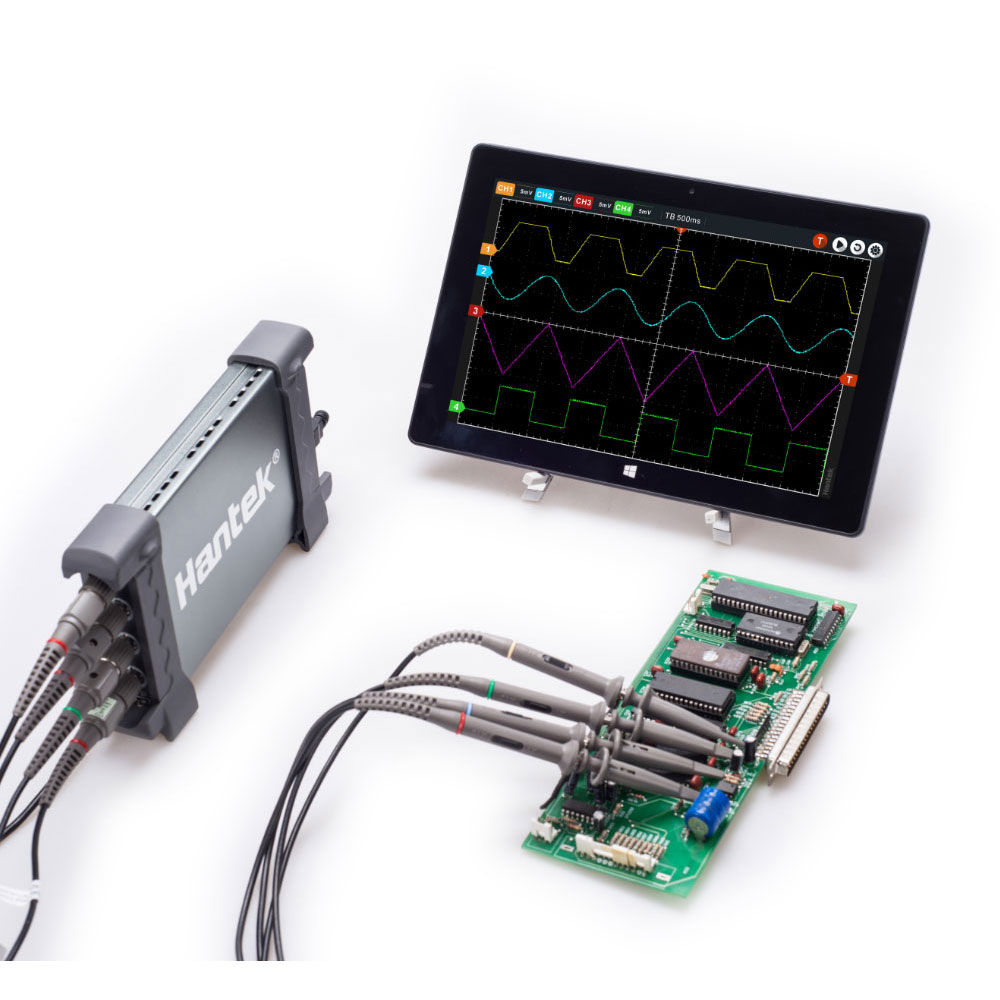

  • 4 channels oscilloscope, 1GSa/s real time sampling rate, 2mV-10V/DIV high input sensitivity and large input range, 70MHz high bandwidth,
  • The waveform data could be output to EXCEL,BMP,JPG.
  • Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide, X-Y display.
  • FFT spectrum analyzer
  • One computer could connect with multiple oscilloscopes, expand the channel number easily.
  • Provide secondary development library DLL; Provide LabVIEW\VB\VC\QT developing examples.

Additional information

Weight 4.5 kg
Dimensions 40 × 15 × 35 cm
