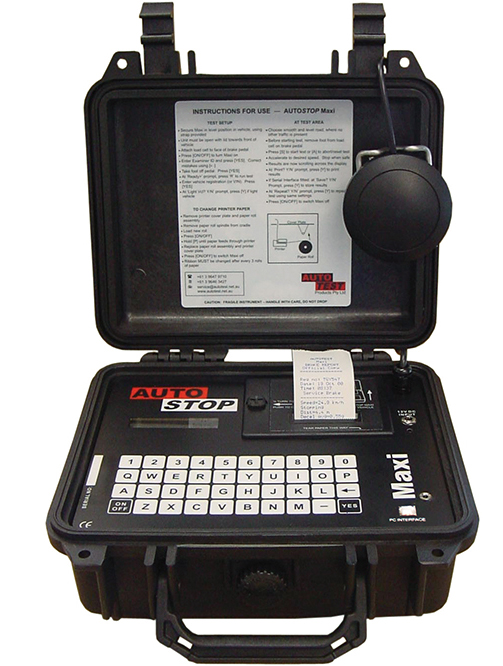

BRAKE TESTER DECELEROMETER MAXI FOR CARS PLUS GPS AEBTC06 AS TRADED

$1,460.00 ex. GST

This vehicle brake tester decelerometer is a portable, battery-powered in-vehicle brake performance tester that measures average and maximum acceleration, stopping distance, test speed and pedal- force required to stop a vehicle. EBS AND GPS AS TRADED

Out of stock

BRAKE TESTER DECELEROMETER MAXI FOR CARS PLUS GPS AEBTC06 AS TRADED

Vehicle Decelerometer WITH GPS

This vehicle brake tester is a portable, battery-powered in-vehicle brake performance tester
that measures average
and maximum acceleration, stopping distance, test speed and pedal- force required to stop a vehicle.

It evaluates brake
performance in a quick reliable manner
and prints an accurate test report that
complies with International Standards. An efficient diagnostic and compliance
tool, designed to test service
and emergency brakes
of heavy and
slow moving vehicles, off-road vehicles and
even fork lifts
used in the
transport and mining
industries.EBS

The unit includes
data logging and download to PC via USB interface, and Bluetooth connectivity..

Approved for use by DRM, TMR, DRM, Vic Roads

Optional Extra - Fleet management and
reporting software

Extend
the capabilities of your brake meter with this powerful vehicle database and
brake test reporting software application. Specifically developed for
use with brake
meters,

*Longer extension available if required

4
easy testing steps with
the
Vehicle Brake tester-Decelerometer

STEP 1: Secure the vehicle with its strap or
optional floor- mounted magnet, in a horizontal position, with the lid open and facing
forward. Attach the load cell to the brake
pedal to test the service
brakes.







STEP 2: Turn on the meter and enter the examiner’s ID and the vehicle’s registration number. Start the test by accelerating the
vehicle to the required speed.

STEP 3: Apply the brakes by pressing your foot on the load cell attached
to the brake pedal,
until the vehicle
is stationary.


STEP 4: After the vehicle has come to a stop, the Heavy evaluates the brake
performance, and displays
and prints the test results.

Features




Calculates and displays average and maximum deceleration,
distance to stop, test speed and pedal-force required
to stop the vehicle




Prints two original reports (one for the customer, the other for the examiner)
as a permanent record of the test results, date, time, examiner’s ID number and the vehicle’s registration/VIN number




Price Competitive




Lightweight (3.0kg), compact (123x267x246mm) and
portable




Robust construction that is water-resistant and petrol, chemical and acid
proof




Conventional (QWERTY) keypad lay-out, with tactile membrane
cover LCD display




Adjustable display
control




Both metric and imperial
units
of
measurement




Built-in integrity check




Rechargeable, sealed, acid-gel
battery, with low-battery-level indicator and automatic
shut-down




Calibration that
is intentionally traceable
through NATA




Interval of calibration as determined by the user

12
month warranty

Low-cost spare parts, accessories and consumables

Comprehensive after-sales service and assistance

Internet support
hotline for diagnosis and
calibration

Optional Features




Numerous user-entry hardware and software options




Optional external accelerometer for isolated driver cabins

Optional output to ISO 3412

Specifications
Input





Load Cell: rated to less than ±1N,
0-1000N





Accelerometer: rated to less than ±1% over 0-1.5g Output

Display: 8-character LCD

Built-in printer
(Dot Matrix)




USB interface

Bluetooth connectivity

Analysis of Test Results




Average and maximum deceleration




Test speed




Stopping distance




Time
to stop




Foot
pedal force

Power Source




12V, 1.9AH, sealed-lead acid rechargeable battery

Printer





Paper: maximum
diameter: 48mm; width: 44.5mm (±0.5mm)






Ribbon: Epson
type ERC-05




Ribbon life: equivalent to 3 paper rolls




Print speed:
1.0 line/sec

Standard Accessories

Battery charger (Australia
Only)

Paper roll and spindle

Printer ribbon

USB cable

Printer cover
plate assembly

Straps or optional floor-mounted magnet for case restraint

User Manual

Note:
Outer appearance and specifications are subject to change without prior notice
