6.3 Tonne Two-Post Clear-Floor Vehicle Hoist, Three Phase - AECL260CFDCA
The LUFTEN AECL260CFDCA is a clear-floor, two-post vehicle hoist with a rated lifting capacity of 6,300 kg. Its clear-floor configuration leaves the floor area between the columns unobstructed, supporting access to transmissions, differentials, exhaust systems and other underbody components.

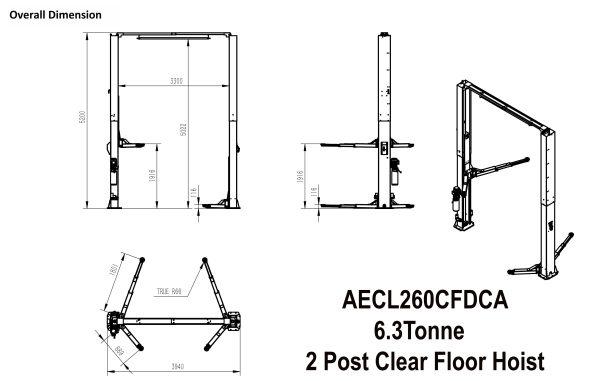

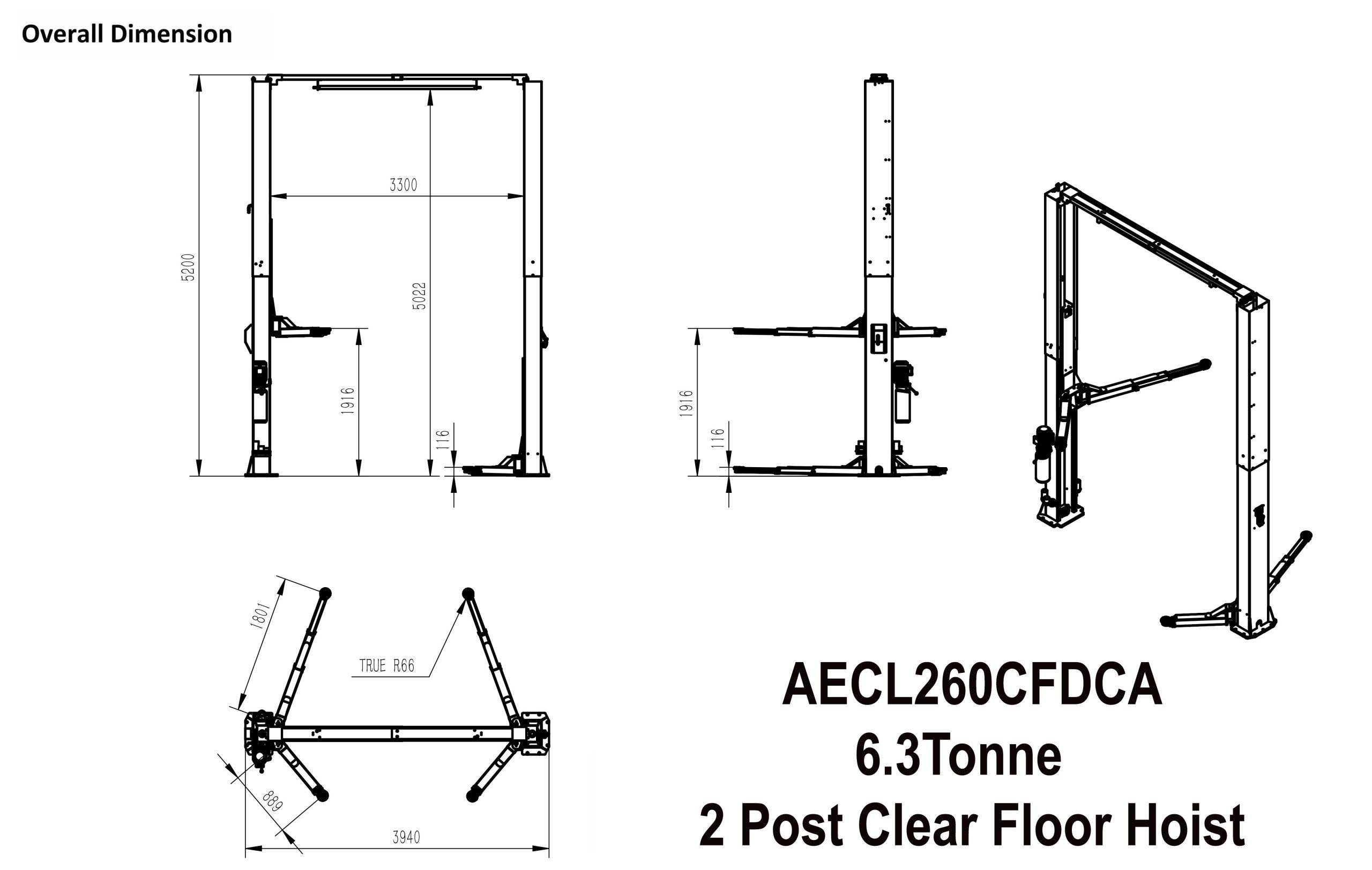

The lift has a documented maximum lifting height of 1,916 mm, an overall height of 5,200 mm and an overall width of 3,940 mm. Clearance between the columns is 3,300 mm.
Key features
- 6,300 kg rated lifting capacity
- Clear-floor two-post configuration
- Maximum lifting height of 1,916 mm
- 3,300 mm inside-column clearance
- Telescopic lifting arms with a documented reach of approximately 889-1,801 mm
- Three-phase electrical supply
- 3.0 kW / 4 hp hydraulic power unit
Technical specifications
| Model | AECL260CFDCA |
|---|---|
| Lift type | Two-post clear-floor vehicle hoist |
| Rated lifting capacity | 6,300 kg |
| Maximum lifting height | 1,916 mm |
| Minimum pad height | 116 mm |
| Overall height | 5,200 mm |
| Overhead clearance shown | 5,022 mm |
| Overall width | 3,940 mm |
| Inside column clearance | 3,300 mm |
| Arm reach shown | Approximately 889-1,801 mm |
| Approximate raising time | 60 seconds |
| Approximate lowering time | 50 seconds |
Electrical and hydraulic requirements
| Electrical supply | 415 VAC, 50 Hz, three phase |
|---|---|
| Motor power | 3.0 kW / 4 hp |
| Recommended circuit breaker | 30 A |
| Hydraulic oil requirement | 11-18 L, AW32 or AW46 |
Construction and shipping data
| Column steel thickness | 6 mm |
|---|---|
| Carriage steel thickness | 6 mm |
| Arm steel thickness | 8 mm |
| Packing dimensions | 2,997 x 1,117 x 711 mm |
| Listed equipment weight | Approximately 1,070 kg |
Installation considerations
This is a tall, three-phase vehicle hoist. Confirm the available ceiling height, workshop access, vehicle dimensions, lifting points, load distribution, floor specification and electrical installation before purchase.
Important installation information
Installation, electrical connection, commissioning, inspection and ongoing maintenance must be completed in accordance with the supplied instructions and applicable requirements. Electrical connection must be completed by an appropriately qualified person.
Additional information
| Weight | 1020 kg |
|---|---|
| Dimensions | 310 × 45 × 140 cm |
