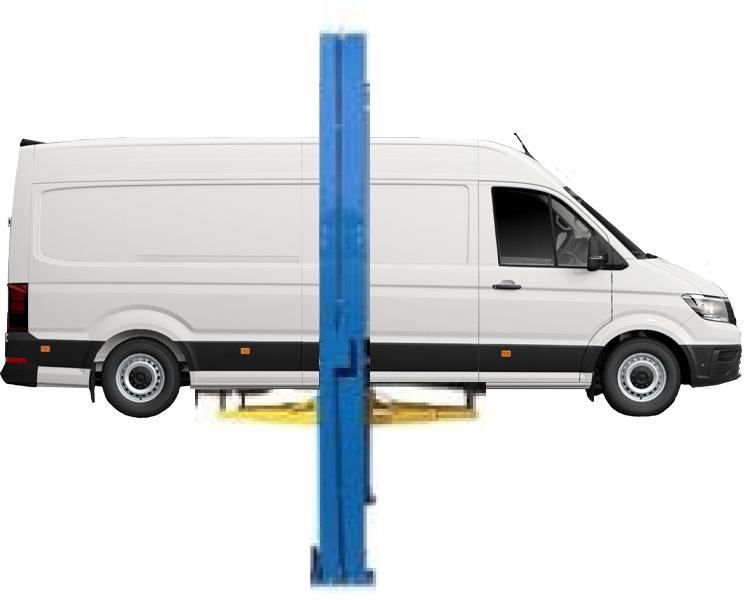

5.5 Tonne Two-Post Clear-Floor Vehicle Hoist, Single Phase - AECL255CFDCA
The LUFTEN AECL255CFDCA is a clear-floor, two-post vehicle hoist with a rated lifting capacity of 5,500 kg. It provides unobstructed floor space between the columns, helping technicians access transmissions, differentials, exhaust systems and other underbody components.
The lift has a maximum lifting height of 1,900 mm, an overall width of 3,940 mm and 3,300 mm of clearance between the columns. Its documented drive-through width is 2,939 mm.
Key features
- 5,500 kg rated lifting capacity
- Clear-floor two-post configuration
- Maximum lifting height of 1,900 mm
- Manual lock release operated from one side
- Telescopic lifting arms with a documented reach of 890-1,800 mm
- Single-phase electrical supply
- 3.0 kW / 4 hp hydraulic power unit
Technical specifications
| Model | AECL255CFDCA |
|---|---|
| Lift type | Two-post clear-floor vehicle hoist |
| Rated lifting capacity | 5,500 kg |
| Maximum lifting height | 1,900 mm |
| Minimum pad height | 100 mm |
| Overall height | 4,400 mm |
| Overhead clearance shown | 4,222 mm |
| Overall width | 3,940 mm |
| Inside column clearance | 3,300 mm |
| Drive-through width | 2,939 mm |
| Arm reach shown | 890-1,800 mm |
| Lock release | Manual release from one side |
| Approximate raising time | 60 seconds |
| Approximate lowering time | 50 seconds |
Electrical and hydraulic requirements
| Electrical supply | 220-240 VAC, 50 Hz, single phase, 15 A |
|---|---|
| Motor power | 3.0 kW / 4 hp |
| Recommended circuit breaker | 30 A |
| Hydraulic oil requirement | 11-18 L, AW32 or AW46 |
Construction and shipping data
| Column steel thickness | 6 mm |
|---|---|
| Carriage steel thickness | 6 mm |
| Arm steel thickness | 7.75 mm |
| Equalisation cable diameter | 9 mm |
| Packing dimensions | 2,997 x 1,117 x 711 mm |
| Listed weight | 999 kg |
Plant design registration
The AECL255CFDCA is recorded under WorkSafe Victoria plant design registration WSV-0150598641. The registration identifies the plant as a two-post vehicle hoist with a maximum rated capacity of 5,500 kg and a maximum working height of 1.9 metres.
Important installation information
Installation, electrical connection, commissioning, inspection and ongoing maintenance must be completed in accordance with the supplied instructions and applicable requirements. Confirm the available workshop space, vehicle dimensions, lifting points, load distribution, floor specification and electrical circuit before purchase or installation.
Additional information
| Weight | 999 kg |
|---|---|
| Dimensions | 300 × 118 × 71 cm |
