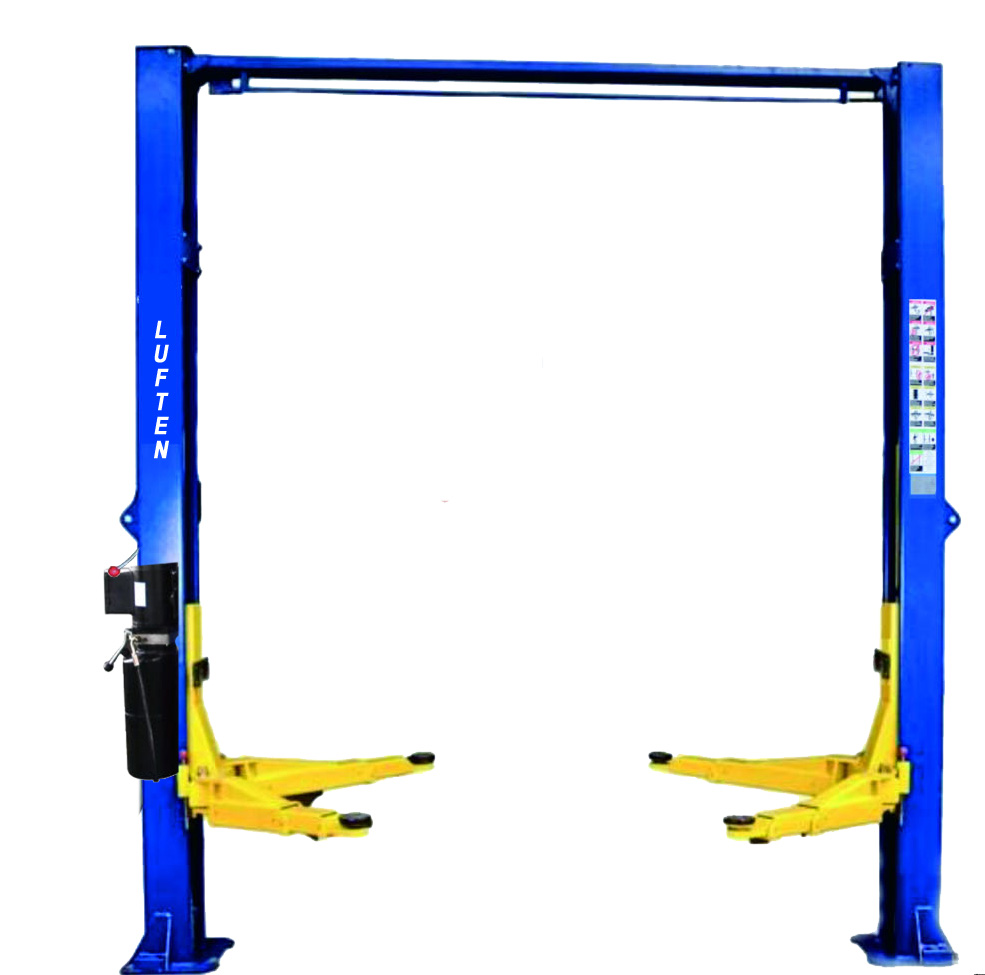

CAR LIFT 4 TONNE TWO POST CLEAR FLOOR HOIST AECL240CFCCA AA

$3,250.00 ex. GST

The AEL240CFCCA AA clear floor hoist can lift vehicles weighing 4 tonne to a height of approx 1800mm in 50 seconds. Being Clear floor it is ideal for working on gear boxes, diffs and oil changing as there are no obstacles. CE Approved, Registered by Safework NSW LUFTEN Heavy duty two post car lift comes with extra thick posts, heavy duty inside carriage and dual extension arms. This hoist comes with twin Chain over Hydraulic drive system, single lock release system, comes with heavy duty 8mm steel cable.

Out of stock

SKU: AECL240CFCCA AA Categories: , ,

CAR LIFT 4 TONNE TWO POST CLEAR FLOOR HOIST AECL240CFCCA AA

The AEL240CFCCA AA clear floor hoist can lift vehicles weighing 4 tonne to a height of approx 1800mm in 50 seconds. Being Clear floor it is ideal for working on gear boxes, diffs and oil changing as there are no obstacles. CE Approved, Registered by Safework NSW LUFTEN Heavy duty two post car lift comes with extra thick posts,
heavy duty inside carriage and dual extension arms. This hoist comes
with twin Chain over Hydraulic drive system, single lock release system, comes
with heavy duty 8mm steel cable.

Technical data:

Model

AECL240CF AA

Lifting
Capacity

4,000kgs
(9,000LBS)

Lifting
Height

1920mm (75
9/16”)

Lifting Time

55S

Overall
Height

3835mm (151”)

Minimum
Height

95mm (3 3 /4”)

Overall Width

3410mm (134
1/4”)

Width inside
Columns

2850mm (112
1/4”)

Motor Power

2.2KW (3HP

Shipping
Weight

630kgs
(1,389LBS)

Features:

4.0T(9,000LBS)/4.5T(10,000LBS)

One side manual release and dual chain drive cylinders.

  • 4,000Kg (9,000LBS.) lifting capacity.
  • 1920mm (75 9/16”) lifting height suitable for various operators.
  • Single-point lock release by manual and 24V low voltage operation.
  • Durable chain drive cylinder in each column carries with anti-surge valves.
  • Standard with 4 two-stage lifting arms.
  • Screw-up rubber pads with min height 95mm (3 3/4”).
  • Standard with high limit switch.
  • Standard with curtain inside column and foot guard.
  • Overhead safety protection device.
  • Automatic arms restraints.
  • Professional powder coating.
  • CE certificated.

Adjustable high quality screw type lift pads

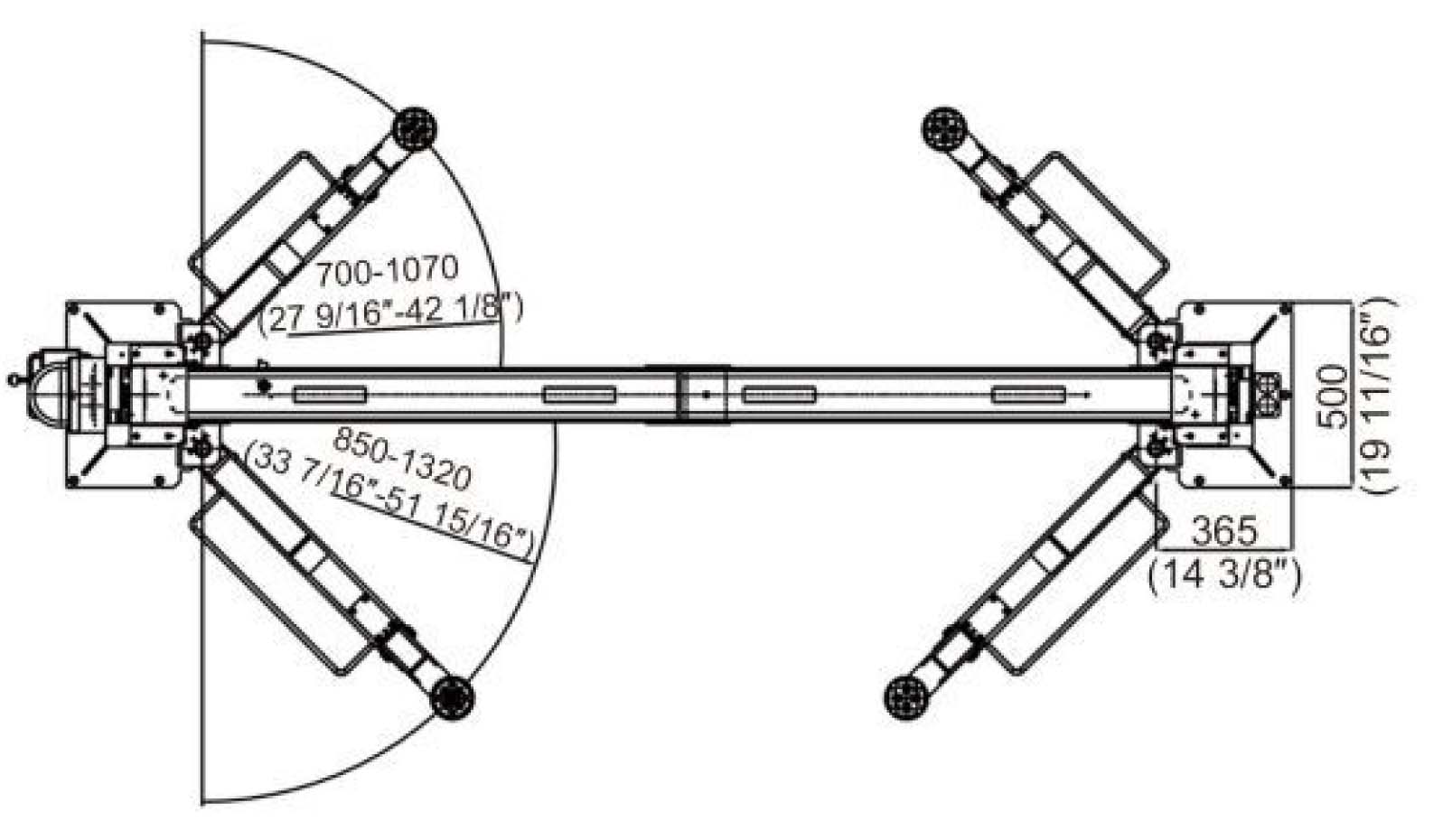

OVERALL DEMENSIONS:

Pack 1 :L: 265 W:120: H: 48cm Weight 5630kg
Pack 2: L: 60 W: 15 H: 15cm Weight 20kg
