4 POST 6 TONNE CARAVAN AND RV LIFT WITH CARAVAN JACKING BEAMS AECL4600W FROM LUFTEN

$14,250.00 ex. GST

4 post lift

4 post hoist

Work on Caravans and RVs with ease with the extra wide AECL4600 extra wide 4 post lift. LUFTEN

Only 2 left in stock

4 POST CARAVAN AND RV LIFT
6 TONNE SINGLE OR THREE PHASE AECL4600W

GET 6 MONTHS INTEREST FREE https://procuret.com/b?s=HPX

Work on Caravans and RVs with ease with the extra wide AECL4600 extra wide 4 post lift.

FEATURES:

  • CE Certified suitable for vehicle repair and maintenance
    service workshops
  • 6 Ton lifting capacity

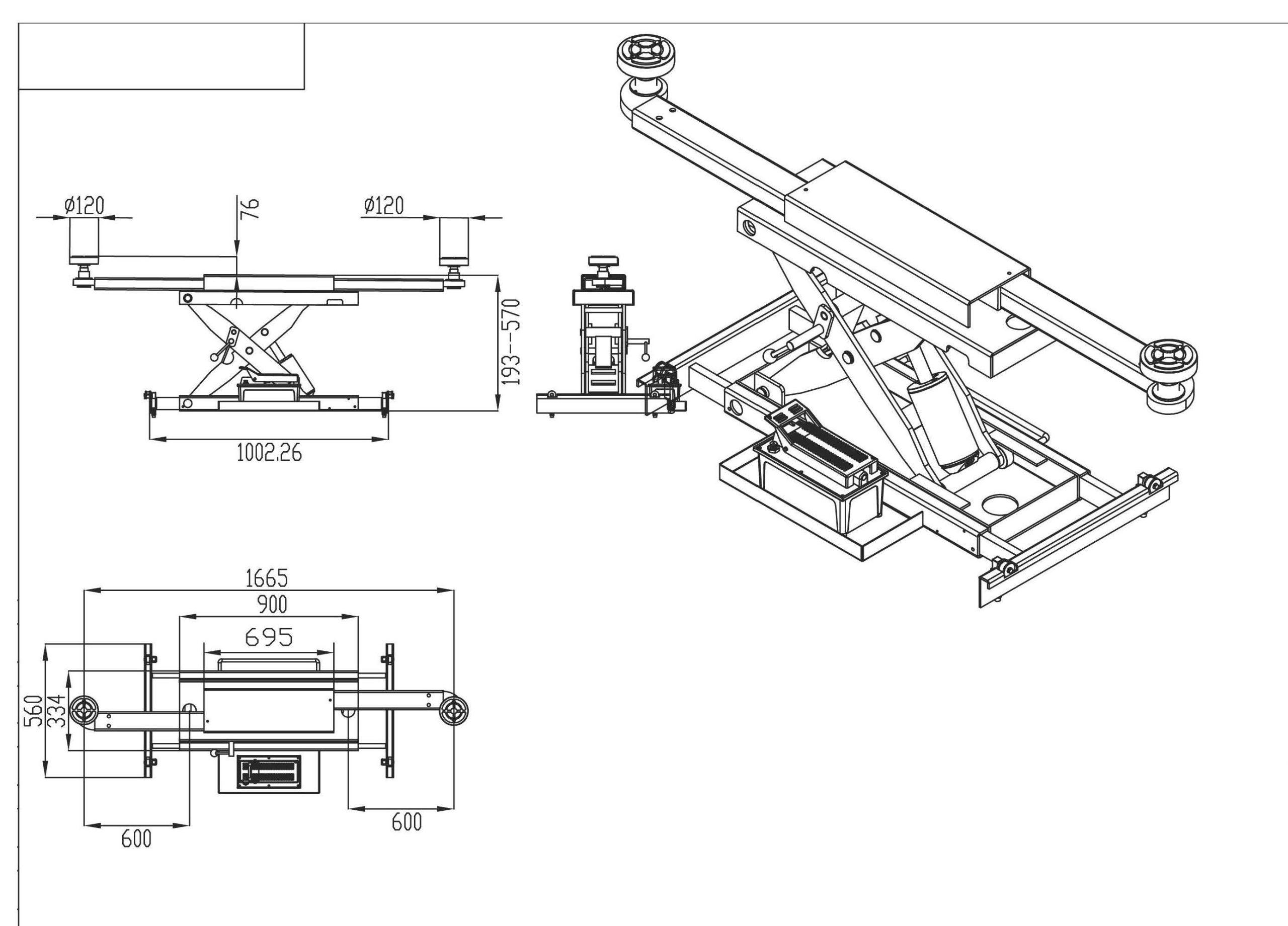

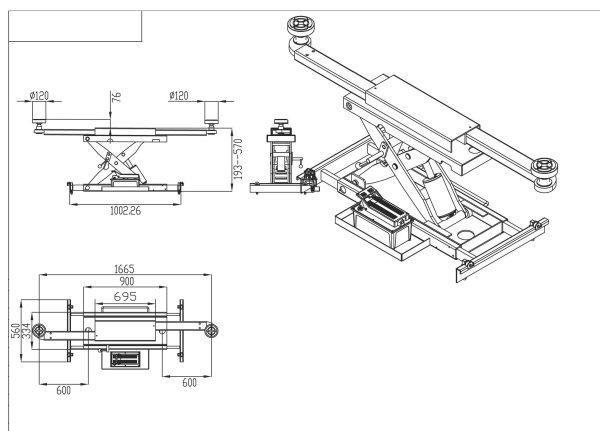

  • 2 x 3 Ton extended jacking beams.
  • Manual single point lock release, easy to
    operate
  • Aluminum shell motor prevents overheating.
  • Low profile, minimum height is 270mm.
  • The heavy duty steel wire drum, ensures the
    vehicles safety.
  • Adjustable runways make the lift
    suitable for a greater range of vehicles.
  • The automatic operated mechanical lock
    engages every 50mm in the lifting process to ensure the vehicle lifting safety.
  • Runway synchronizer system prevents vehicles
    from tilt possibly.
  • The hydraulic system is equipped with
    device for over-load prevention.
  • Protection against steel rope breakage device provided.
  • 24V safety voltage used for control system.
  • Routine testing with 115% dynamic and 150% static
    loading.
  • Available in single and three phase.

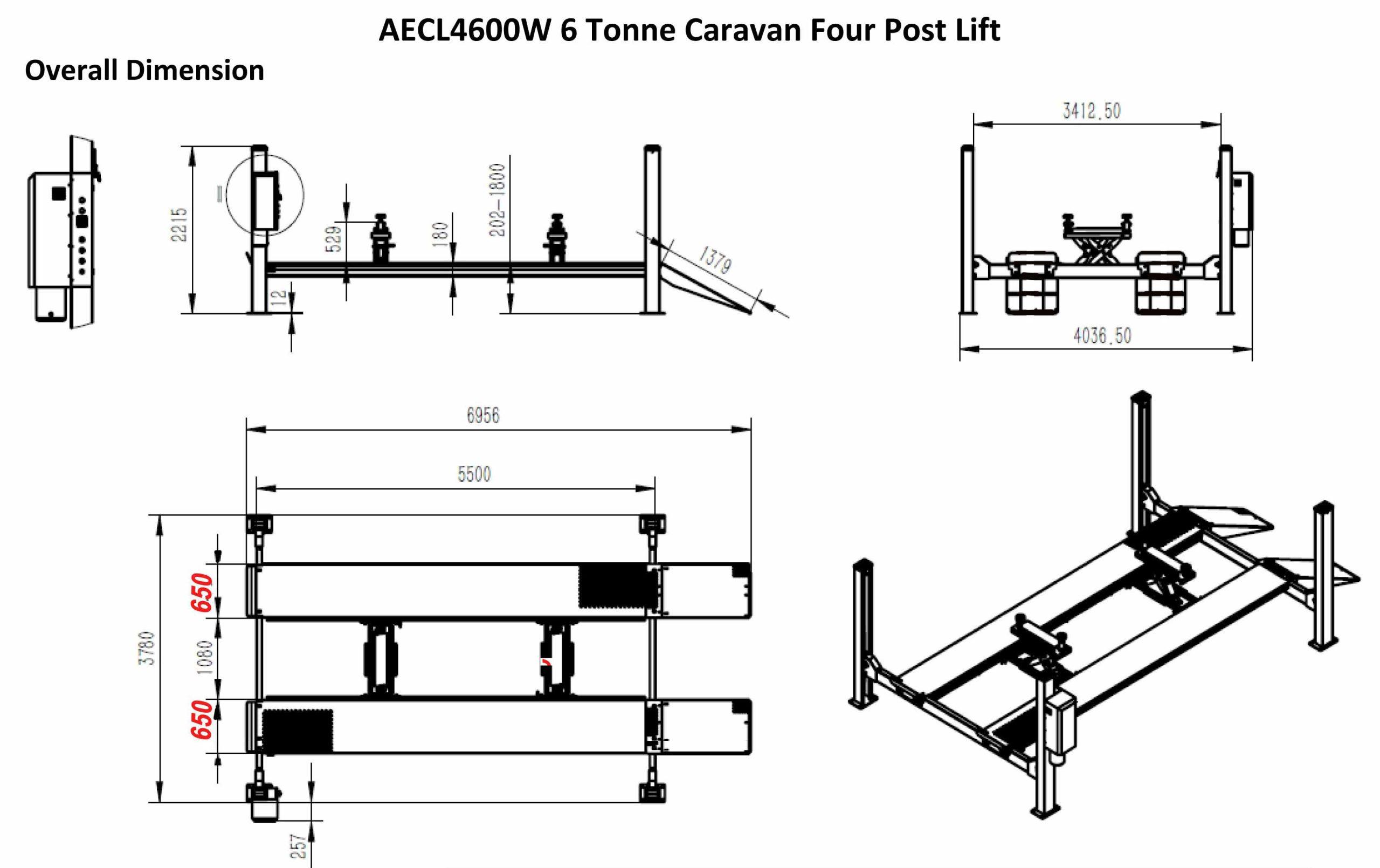

TECHNICAL SPECIFICATION:



Lifting capacity

6000 kg

Max. lifting height

1800 mm

Min. height

225 mm

Platform width

600 mm

Platform length

5500 mm

Overall height

2215 mm

Overall width

3780 mm

Overall length (without RAMP)

5713.5 mm

Overall length (within RAMP)

7088 mm

Width between platforms

1080 mm

Width between the posts

3415 mm

Lifting time

55-60 sec

Lowering time

45-50 sec

Motor power

3.0 kW

Electricity supply

415V/Three(3) Phase/50Hz

Circuit breaker

A 30 amp breaker is required and the owner's
responsibility.

Jacking beam capacity

3 Tonne x 2pcs

Jacking beam rising height

529 mm

RAMP

Standard 2pcs

Equipment weight

Approx. 2650 kg



Australian Standard AS/NZ 1418.9:1996 and AS/NZS 2550.9:1996,
